[Collaboration] Automation email configuration

Configuration

It is possible to send emails when a new message is sent on a collaboration. To do this, Automation is used. (Settings > Automation).

A new automation needs to be created, following those steps:

  • For Trigger Type, Listen to Collaboration(s) must be selected.

    • It is then possible to restrict the concepts and the intention(s).

  • For Action, Send an email must be selected.

  • For To, User > Collaboration recipients can be selected. Collaboration recipients are the subscribers defined in the collaboration, minus the user that has sent the new message (User > Collaboration message author).

  • The Subject and the Body need to be filled.

Template

For Subject and Body, the following template can be chosen (the template can be adapted with different colours and a different language or text):

Template rendering

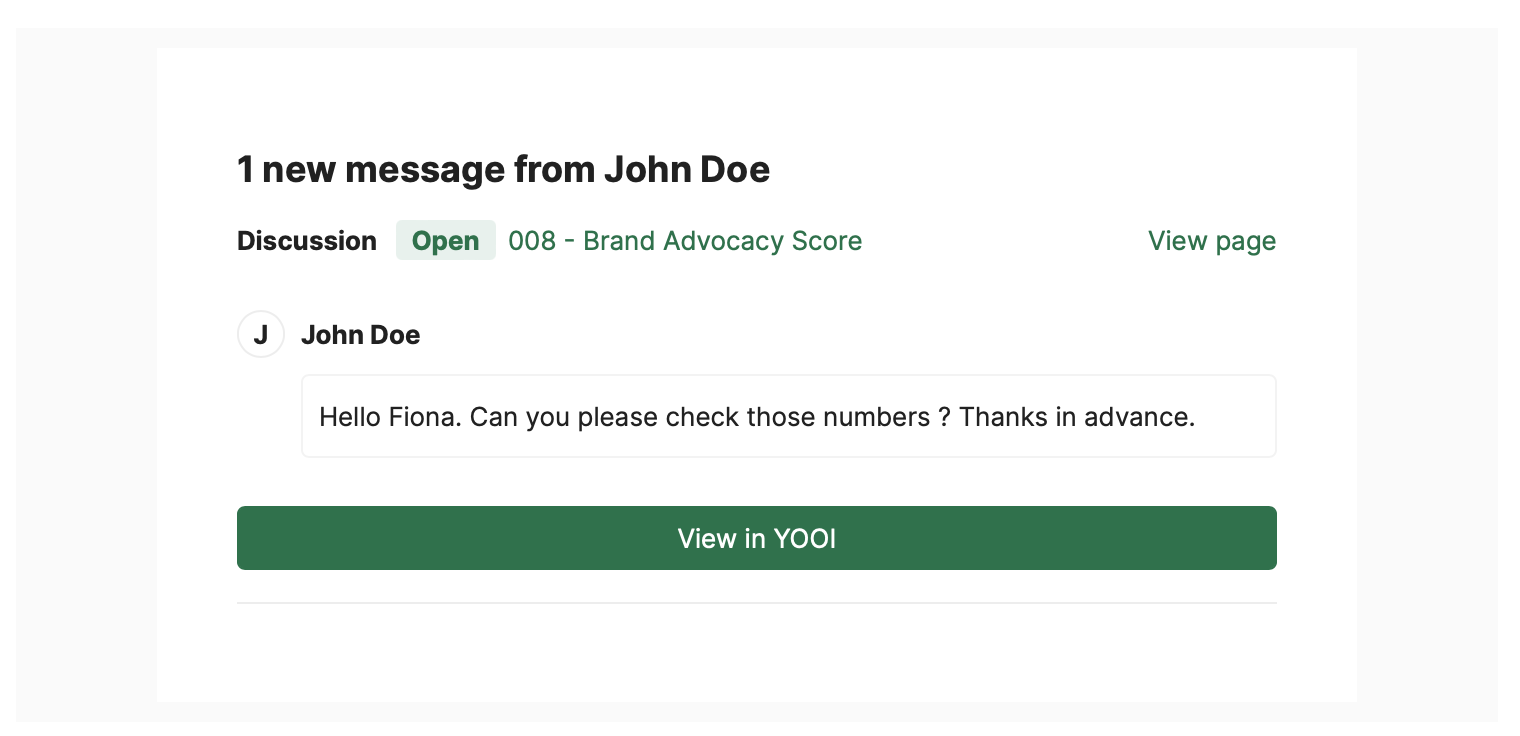

First message:

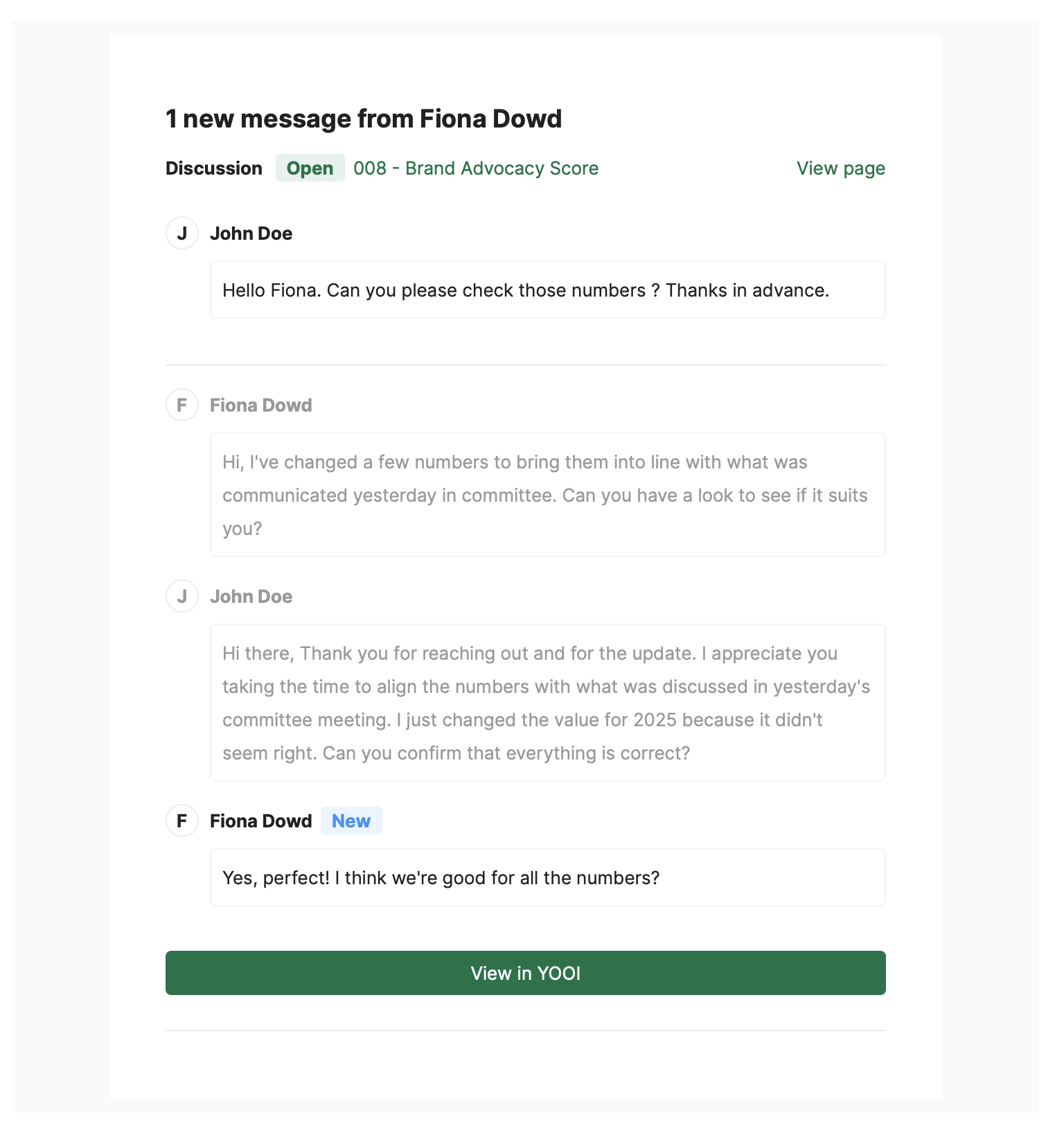

Second, Third, and Fourth messages:

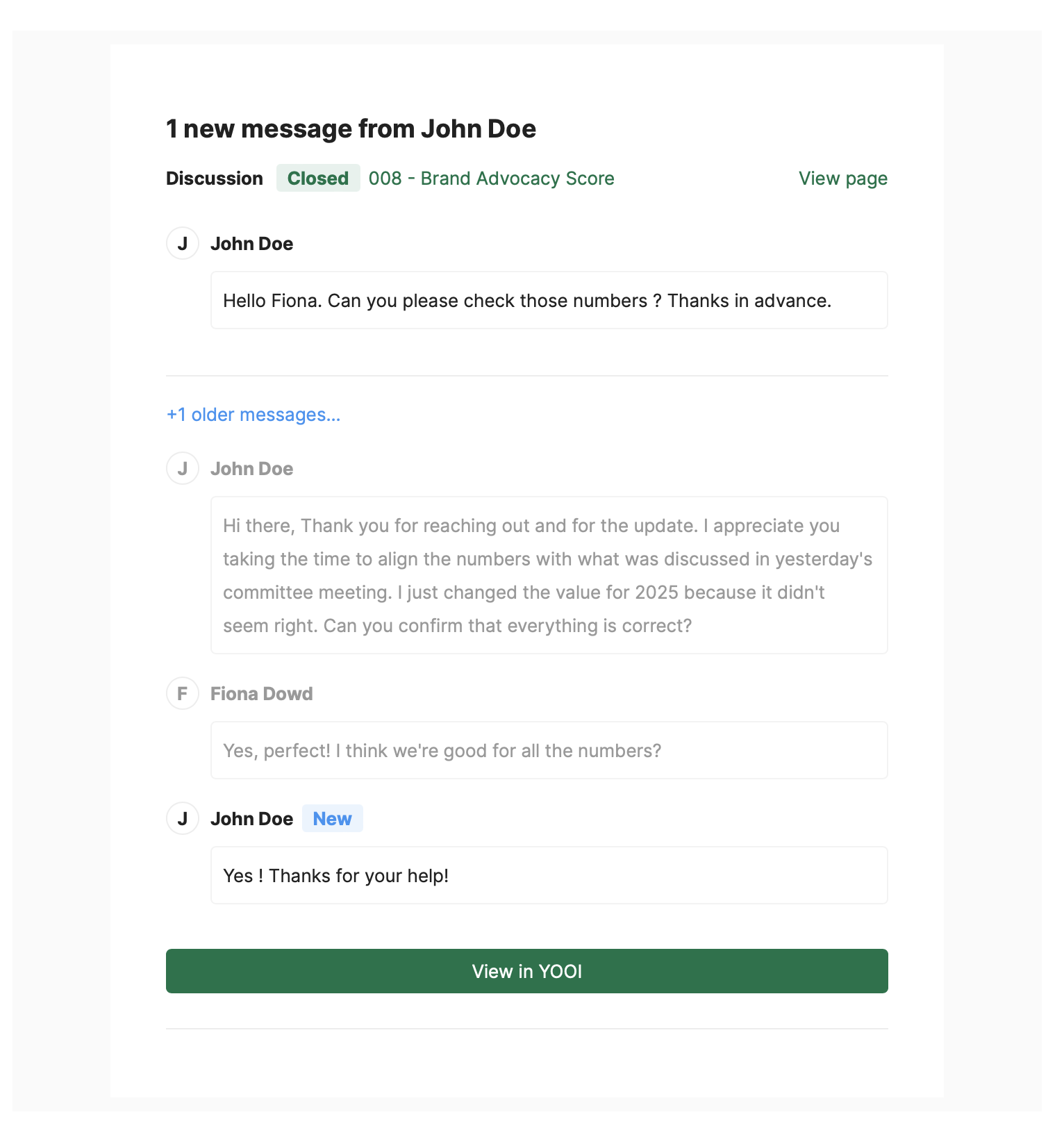

Fifth and more messages:


Template configuration

Subject

CODE
1 new message from {{ collaboration_message.author }}

Body

Body template
CSS
{%set i18n = {
'1 new message from': '1 new message from',
'View page': 'View page',
'older messages': 'older messages',
'View in YOOI': 'View in YOOI',
'New': 'New'
} %}

{%set color = {
'primary': '#007348',
'secondary': '#E6F1ED'
} %}

{% set hostname = 'https://yooi.yooi.io' %}

{% set first_message = collaboration.messages | first %}
{% set messages_count = collaboration.messages.length %}

{% macro renderViewButton() %}
<tr id="button">
  <td style="background-color:{{ color.primary }};border-radius:8px;text-align:center" valign="top">
    <a
        href="{{ hostname }}{{ collaboration.uri}}"
        target="_blank"
        style="background-color:{{ color.primary }};border-radius:4px;border:1px solid {{ color.primary }};color:#ffffff;display:block;font-weight:normal;font-style:normal;padding: 4px;text-decoration:none;min-width:30px;text-align:center;"
    >
      {{ i18n['View in YOOI'] }}
    </a>
  </td>
</tr>
{% endmacro %}

{% macro renderMessage(authorName, message, isNew, isFaded) %}
{% if isFaded %}
<tr class="faded">
  {% else %}
<tr>
  {% endif %}
  <td>
    <table border="0" cellpadding="0" cellspacing="0" width="100%">
      <tbody>
        <tr>
          <td>
            <table border="0" cellpadding="0" cellspacing="0" width="100%" style="border-collapse: separate;border-spacing: 0 8px;">
              <tbody>
                <tr style="line-height: 24px;">
                  <td class="circle" style="font-weight: bolder;">{{ authorName | first | upper }}</td>
                  <td valign="top" style="width: 100%;padding-left: 8px;font-weight: bolder;text-align: left;">
                    {{ authorName }}
                    {% if isNew %}
                    &nbsp;<span class="newTag">{{ i18n['New'] }}</span>
                    {% endif %}
                  </td>
                </tr>
                <tr style="line-height: 24px;">
                  <td>
                  </td>
                  <td valign="top" style="text-align: left;display: block;border: solid 1px #f3f3f3;vertical-align: middle;border-radius: 4px;margin-left: 8px;padding: 8px;">
                    {{ message }}
                  </td>
                </tr>
              </tbody>
            </table>
          </td>
        </tr>
      </tbody>
    </table>
  </td>
</tr>
{% endmacro %}

<!doctype html>
<html>
  <head>
    <meta property="og:title" content="{{ collaboration_message.author }}">
    <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1">
    <meta name="referrer" content="origin">
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>{{ collaboration_message.author }}</title>
    <link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Inter:400,500,700">
    <style type="text/css">
        table {
            border: 0;
            border-spacing: 0;
            border-collapse: collapse;
        }

        a {
            text-decoration: none;
        }

        a:hover {
            text-decoration: underline;
        }

        .faded td {
            color: #999999;
        }

        .newTag {
            border-radius: 3px;
            display: inline-block;
            padding: 0 8px;
            line-height: 20px;
            color: #3892F3;
            background-color: #EBF4FE;
        }

        @media (prefers-color-scheme: dark) {
            .newTag {
                border-radius: 3px;
                display: inline-block;
                padding: 0 8px;
                line-height: 20px;
                color: #3892F3;
                background-color: #EBF4FE !important;
            }
        }

        .tag {
            border-radius: 3px;
            display: inline-block;
            padding: 0 8px;
            line-height: 20px;
        }

        .mceButton a {
            min-width: 0 !important;
        }

        .mcnPreviewText {
            display: none !important;
            font-size: 0;
            line-height: 0;
            max-height: 0;
            max-width: 0;
            opacity: 0;
            overflow: hidden;
            visibility: hidden;
            mso-hide: all;
        }

        td.circle {
            display: table-cell;
            vertical-align: middle;
            min-width: 22px;
            border: solid 1px #EDEDED;
            width: 22px;
            height: 22px;
            line-height: 22px;
            text-align: center;
            border-radius: 50%;
        }

        .paddedContainer {
            padding: 24px;
        }

        @media only screen and (max-width: 500px) {
            .paddedContainer {
                padding: 0;
            }
        }
    </style>
  </head>
  <body style="height: 100%;margin: 0;padding: 0;width: 100%;background-color: #FAFAFA;font-family: Inter, Helvetica, sans-serif;font-size: 13px;line-height: 22px;">
    <!---->
    <!--[if !gte mso 9]><!---->
    <span class="mcnPreviewText">{{ collaboration.instance_label}}</span>
    <!--<![endif]-->
    <!---->
    <center>
      <table
          align="center"
          border="0"
          cellpadding="0"
          cellspacing="0"
          height="100%"
          width="100%"
          id="bodyTable"
          style="border-collapse: collapse;height: 100%;margin: 0;padding: 0;width: 100%;background-color: #FAFAFA;"
      >
        <tbody>
          <tr>
            <td
                align="center"
                valign="top"
                id="bodyCell"
                style="height: 100%;margin: 0;padding: 10px;width: 100%;border-top: 0;"
            >
              <table
                  border="0"
                  cellpadding="0"
                  cellspacing="0"
                  width="100%"
                  style="border-collapse: collapse;border: 0;max-width: 600px !important;"
              >
                <tbody>
                  <tr>
                    <td class="paddedContainer" valign="top" id="paddedContent" style="background:#FFFFFF;">
                      <table border="0" cellpadding="0" cellspacing="0" width="100%" class="templateContainer" style="border-collapse: separate;border-spacing: 16px;">
                        <tbody>
                          <tr>
                            <td valign="top" id="templateHeader">
                              <table border="0" cellpadding="0" cellspacing="0" width="100%" style="min-width: 100%;border-collapse: collapse;">
                                <tbody class="mcnTextBlockOuter">
                                  <tr>
                                    <td valign="top" class="mcnTextBlockInner" style="padding-top: 9px;">
                                      <table
                                          align="left"
                                          border="0"
                                          cellpadding="0"
                                          cellspacing="0"
                                          style="max-width: 100%;min-width: 100%;border-collapse: collapse;"
                                          width="100%"
                                      >
                                        <tbody>
                                          <tr>
                                            <td
                                                valign="top"
                                                style="padding-top: 0;padding-right: 0;padding-bottom: 12px;padding-left: 0;font-size: 18px;font-weight: bold;text-align: left;line-height: 24px;"
                                            >
                                              {{ i18n['1 new message from'] }} {{ collaboration_message.author.toString() }}
                                            </td>
                                          </tr>
                                          <tr>
                                            <td valign="top" style="padding-top: 0;padding-bottom: 16px;font-weight: bolder;text-align: left;line-height: 22px;">
                                              {{ collaboration.intention }} &nbsp;
                                              <span class="tag" style="color:{{ color.primary }}; background-color:{{ color.secondary }};">
                                                {{ collaboration.status }}
                                              </span>
                                              &nbsp;
                                              <a style="color:{{ color.primary }};font-weight: normal" href="{{ hostname }}{{ collaboration_message.uri}}" target="_blank">{{collaboration.instance_label}}</a>
                                            </td>
                                            <td valign="top" style="padding-bottom: 16px;text-align: right;line-height: 22px;">
                                              <a style="color:{{ color.primary }};font-weight: normal" href="{{ hostname }}{{ collaboration_message.uri}}" target="_blank">
                                                {{ i18n['View page'] }}
                                              </a>
                                            </td>
                                          </tr>
                                        </tbody>
                                      </table>
                                    </td>
                                  </tr>
                                </tbody>
                              </table>
                              <table border="0" cellpadding="0" cellspacing="0" width="100%">
                                <tbody>
                                  {{ renderMessage(first_message.author.toString(), first_message.text, false, false) }}
                                </tbody>
                              </table>
                            </td>
                          </tr>
                          {% if messages_count === 1 %}
                          {{ renderViewButton() }}
                          {% endif %}
                          {% if messages_count > 1 %}
                          <tr>
                            <td valign="top" id="templateBody" style="background:#FFFFFF;padding-top: 9px;padding-bottom: 9px;">
                              <table border="0" cellpadding="0" cellspacing="0" width="100%" style="border-top: solid 1px #ededed;">
                                <tbody>
                                  <tr>
                                    <td style="height: 8px;"></td>
                                  </tr>
                                  {% if messages_count > 4 %}
                                  <tr>
                                    <td valign="top" style="font-weight: normal;text-align: left;word-break: break-word;padding: 8px 0;">
                                      <a href="{{ hostname }}{{ collaboration.uri}}" target="_blank" style="color: #3892F3;">
                                        +{{ messages_count - 4 }} {{ i18n['older messages'] }}...
                                      </a>
                                    </td>
                                  </tr>
                                  {% endif %}
                                  {% for message in collaboration.messages %}
                                  {% if loop.index !== 1 and loop.index > loop.length - 3 %}
                                  {{ renderMessage(message.author.toString(), message.text, loop.index === loop.length, loop.index !== loop.length) }}
                                  {% endif %}
                                  {% endfor %}
                                  <tr>
                                    <td style="height: 24px;"></td>
                                  </tr>
                                  {{ renderViewButton() }}
                                </tbody>
                              </table>
                            </td>
                          </tr>
                          {% endif %}
                          <tr>
                            <td valign="top" id="templateFooter" style="background:#FFFFFF;padding-top: 9px;border-top: 1px solid #ededed;"></td>
                          </tr>
                        </tbody>
                      </table>
                    </td>
                  </tr>
                </tbody>
              </table>
            </td>
          </tr>
        </tbody>
      </table>
    </center>
  </body>
</html>
Hostname configuration

The hostname must be changed to the URL of the platform on which the automation is configured.

CSS
{% set hostname = 'https://yooi.yooi.io' %}
Text configuration

This part can be easily configured:

CSS
{%set i18n = {
'1 new message from': '1 new message from',
'View page': 'View page',
'older messages': 'older messages',
'View in YOOI': 'View in YOOI',
'New': 'New'
} %}

Alternatively, the text can be changed, for example:

CSS
{%set i18n = {
'1 new message from': '1 nouveau message de',
'View page': 'Voir la page',
'older messages': 'ancien(s) message(s)',
'View in YOOI': 'Voir dans YOOI',
'New': 'Nouveau'
} %}
Colors configuration

This part can be easily configured to match the company colour:

CSS
{%set color = {
'primary': '#007348',
'secondary': '#E6F1ED'
} %}

Yooi is not responsible for the template. This is just an example, that can be used in any way desired. The rendering of the template will depend on the mail provider, here the screenshots were taken using the Outlook application.

FAQ Collaboration email automation

Are emails still sent if the collaboration is closed?

Yes, the Listen to collaboration(s) trigger works, even if the collaboration is closed. It is possible to find out the status of the collaboration via the variables available in automation ({{ collaboration.status }}), so the email visual can be modified if that's what is required.
